Precision Tooling & Advanced Materials for High-Tech Manufacturing

Polishing Wheel

Precision Grinding Wheels for Micro-Defect-Free Finishing

Applications

Maximizes production yield and edge integrity in glass substrate manufacturing for display panels and semiconductor packaging by eliminating micro-chipping and micro-cracks

Key Advantages

Maximize Yield

Precision edge chip removal & integrated cleaning

Verified Reliability

High elasticity design for stable, long term performance

Market Proven

Mass supplied to glass substrate production lines

Next Gen Specs

Superior roughness / strength with 180% service life

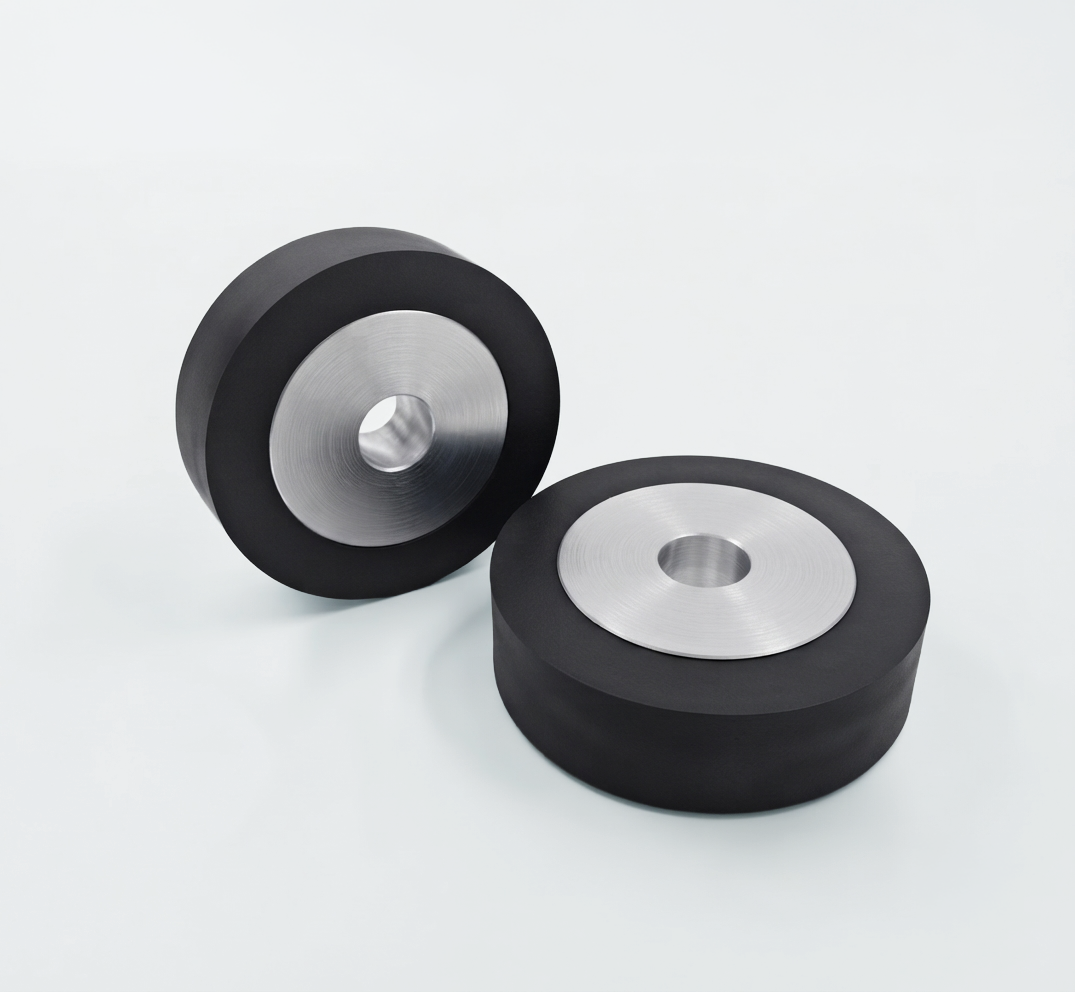

Glass Substrate Edge Polishing Solutions

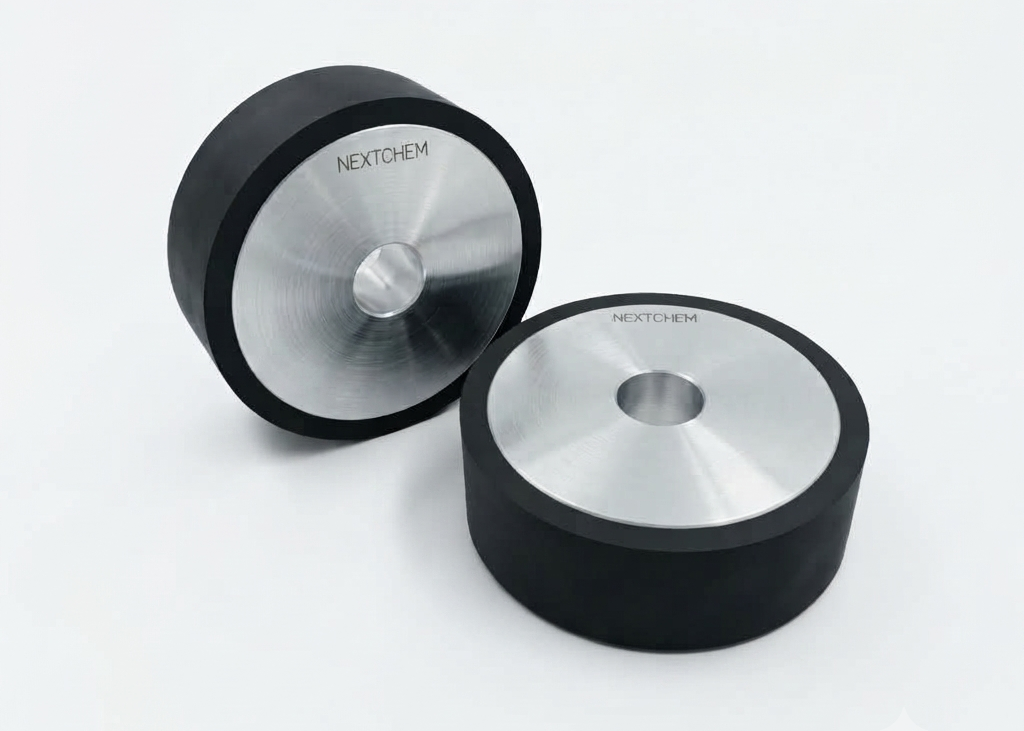

Edge Polishing Wheel

Smooths rough ground edges post-shape grinding with precision abrasive tuning.

Edge Cleaning Wheel

Performs micro-finishing and mopping on polished edges to remove residual particles.

Specification Edge Polishing Wheel Edge Cleaning Wheel
Primary Function Smooths rough ground edges post-shape grinding Performs micro-finishing and mopping on polished edges
Particle Mitigation Eliminates micro-craters that trap glass particles Cleans and removes residual glass particles from the edge
Abrasive Grit Size #400 - #2000 (Customizable) #400 - #800 (Customizable)
Bond Characteristics High-hardness, elastomeric matrix Medium-hardness, elastomeric matrix
Key Benefits Extended service life & high process stability
Customization Dimensions and physical properties tailored to customer operating environments

R&D Products

No. PRODECT Name Purpose
1

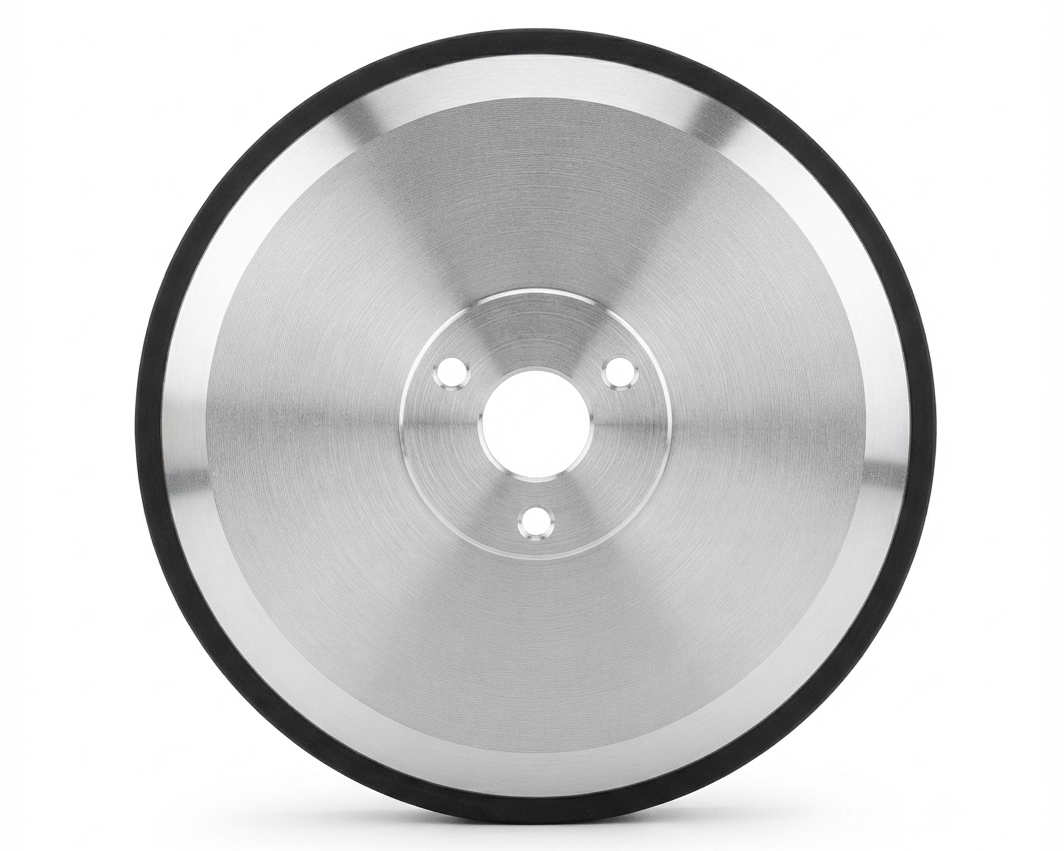

ATC Polishing Wheel Ø150x3t

(#500, #600, #800, #1200)

 OLED Panel Edge Polishing
2

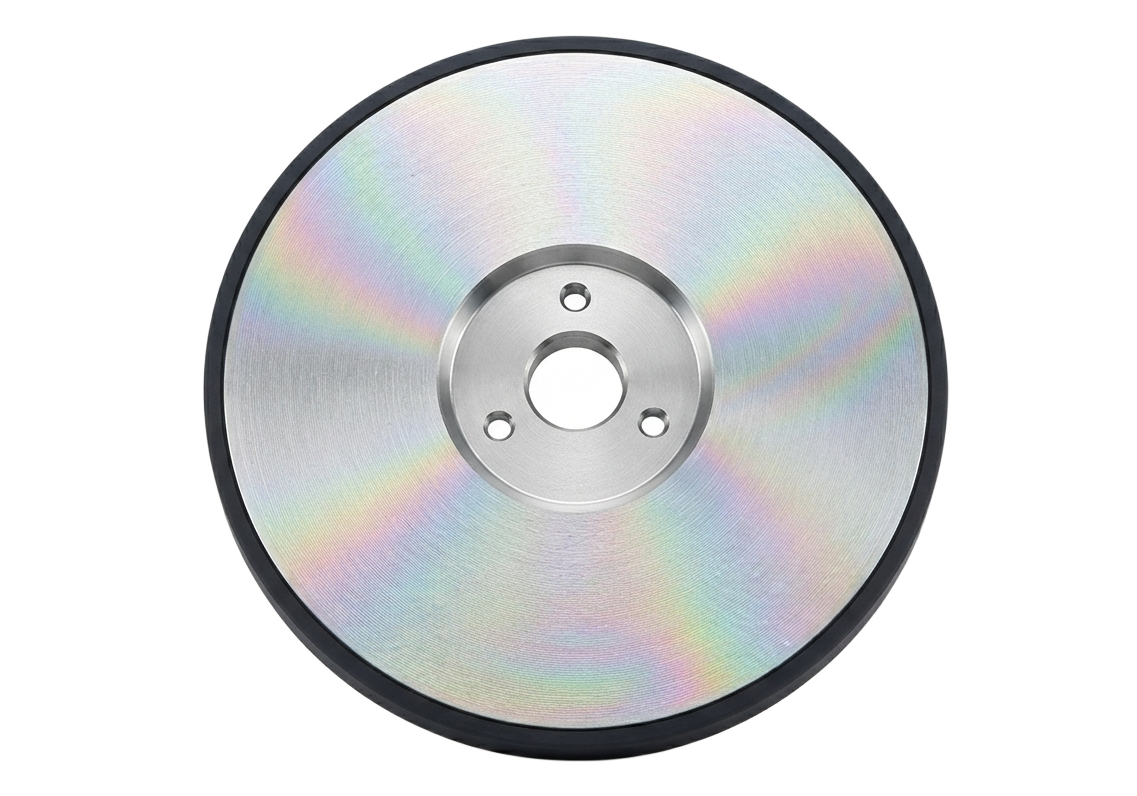

ATC Polishing Wheel Ø150x20t

(#800, #1200)

 OLED Panel Edge Polishing
3

Polishing Tool Ø10

(#500, #1200)

 Smartphone Window Cover 2.5D Edge Polishing
4

Polishing Tool Ø80

(#600, #800, #1200)

 Smartphone Window Cover Surface Polishing

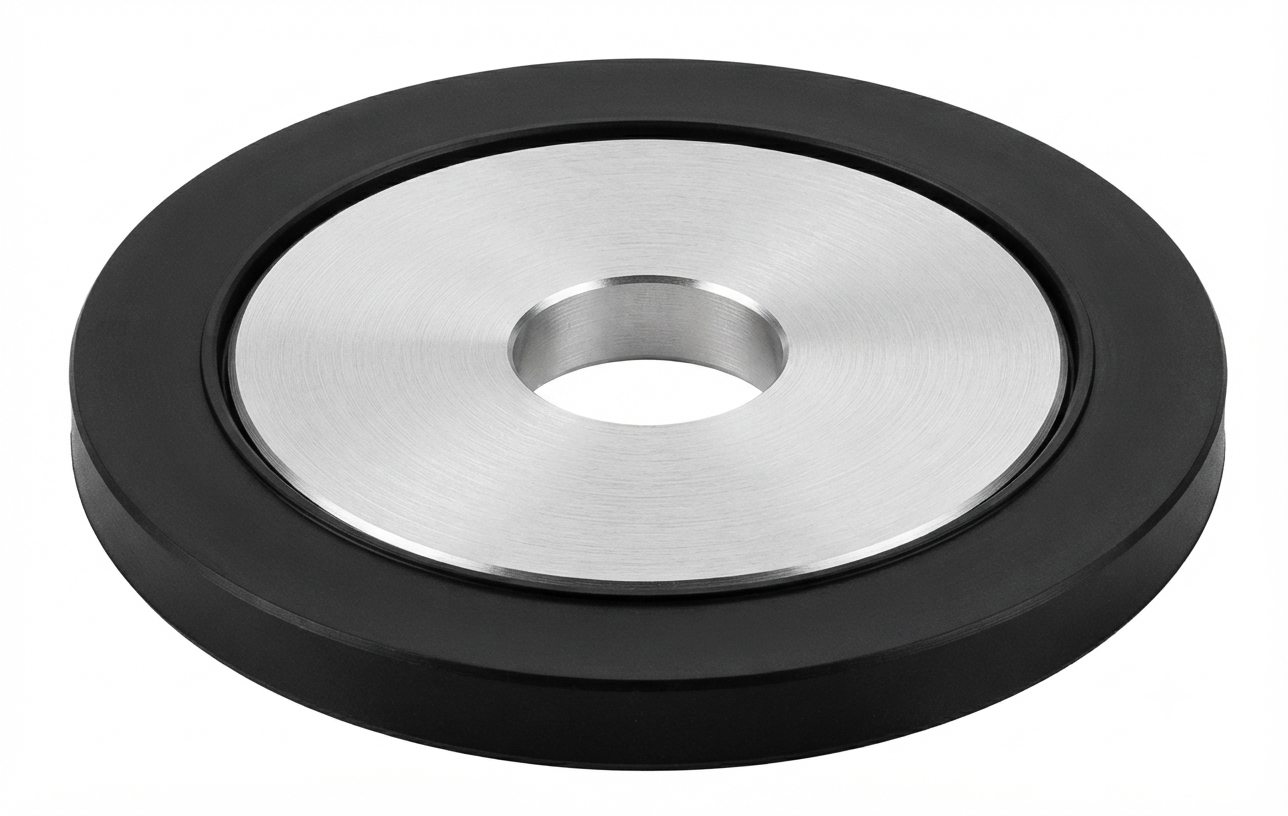

5

Rigid OLED Cell Ø148

(#600)

 Panel Edge Polishing

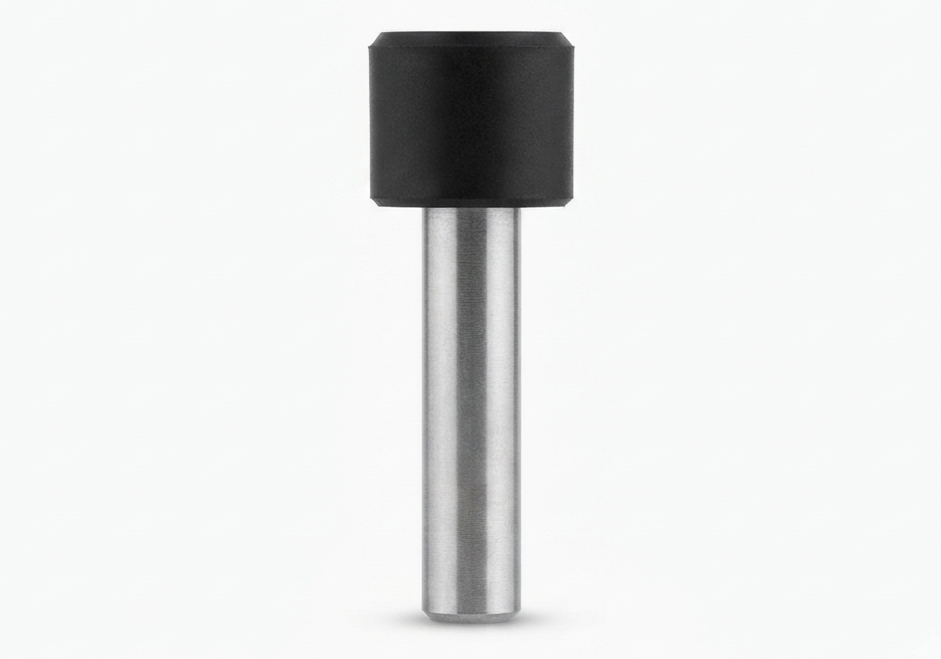

6

Polishing Tool Ø20

(#500, #1200)

 Smartphone Panel Edge Polishing

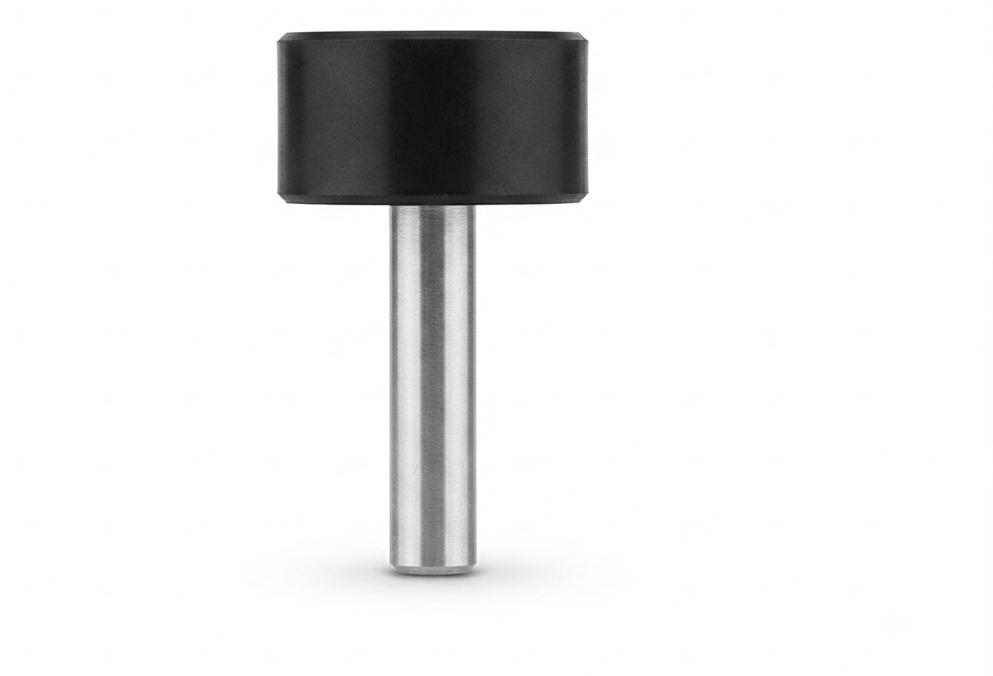

7

Polishing Tool Ø40

(#1200)

 Smartphone Panel Edge Polishing
8

Polishing Tool Ø80

(#600, #800, #1200)

 Smartphone Window Cover Surface Polishing
9

Polishing Tool Ø2

(#1200)

 Smartphone Camera Hole Polishing

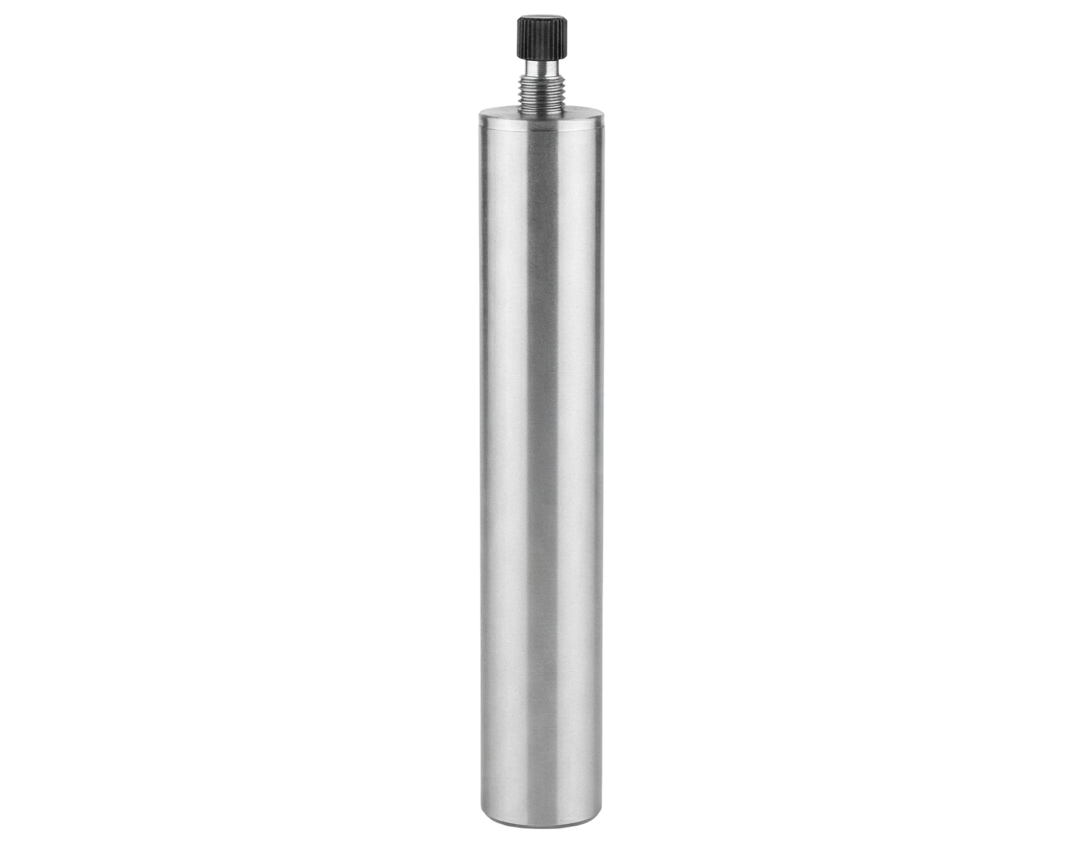

10

Polishing Tool Ø4

(#1200)

 Smartphone Camera Hole Polishing
11

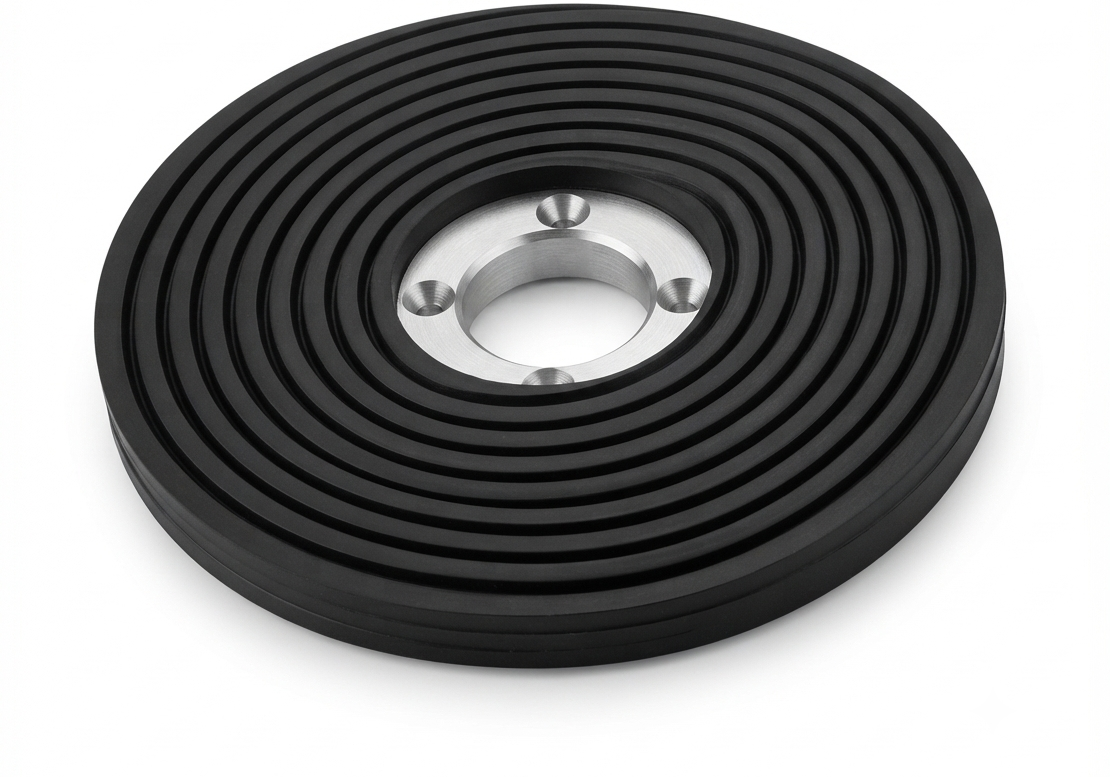

Surface Polishing Wheel (Grooved)

 Silicon Wafer Surface Polishing
12

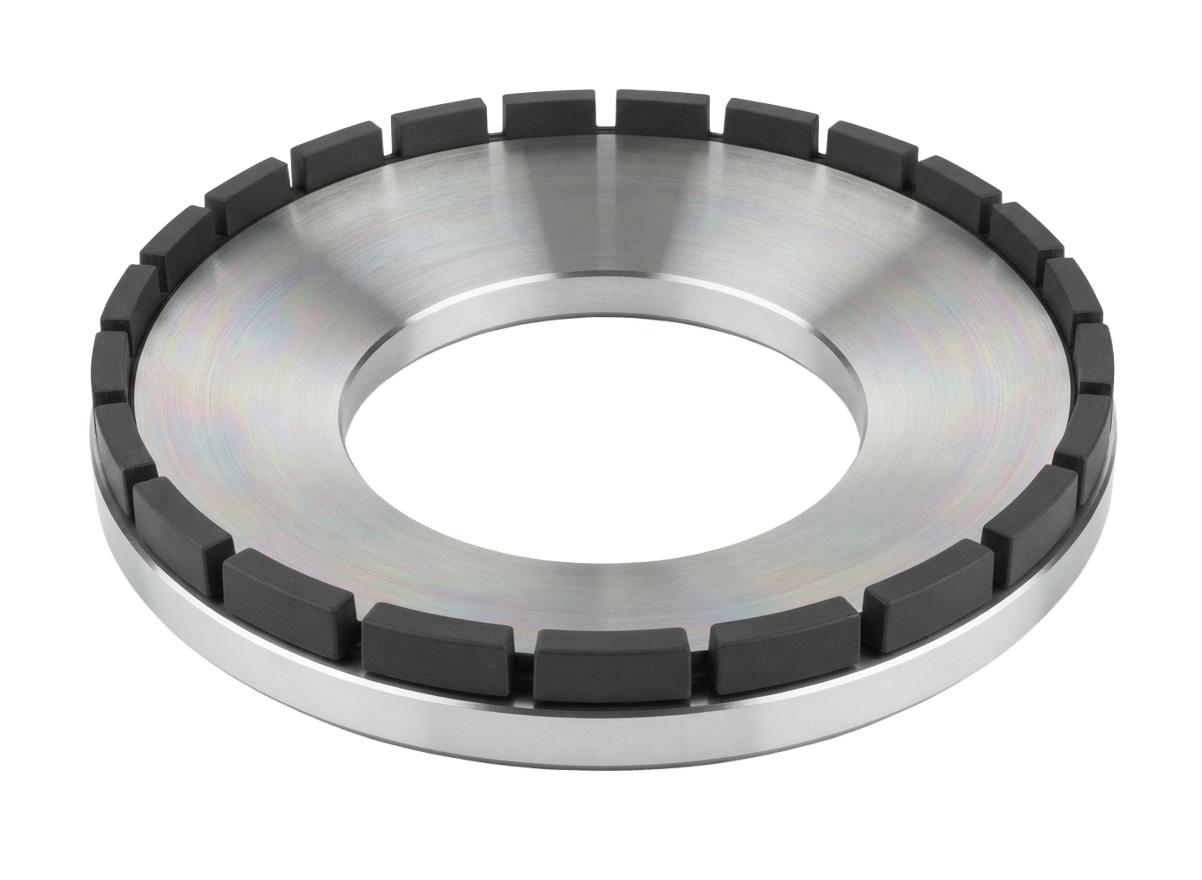

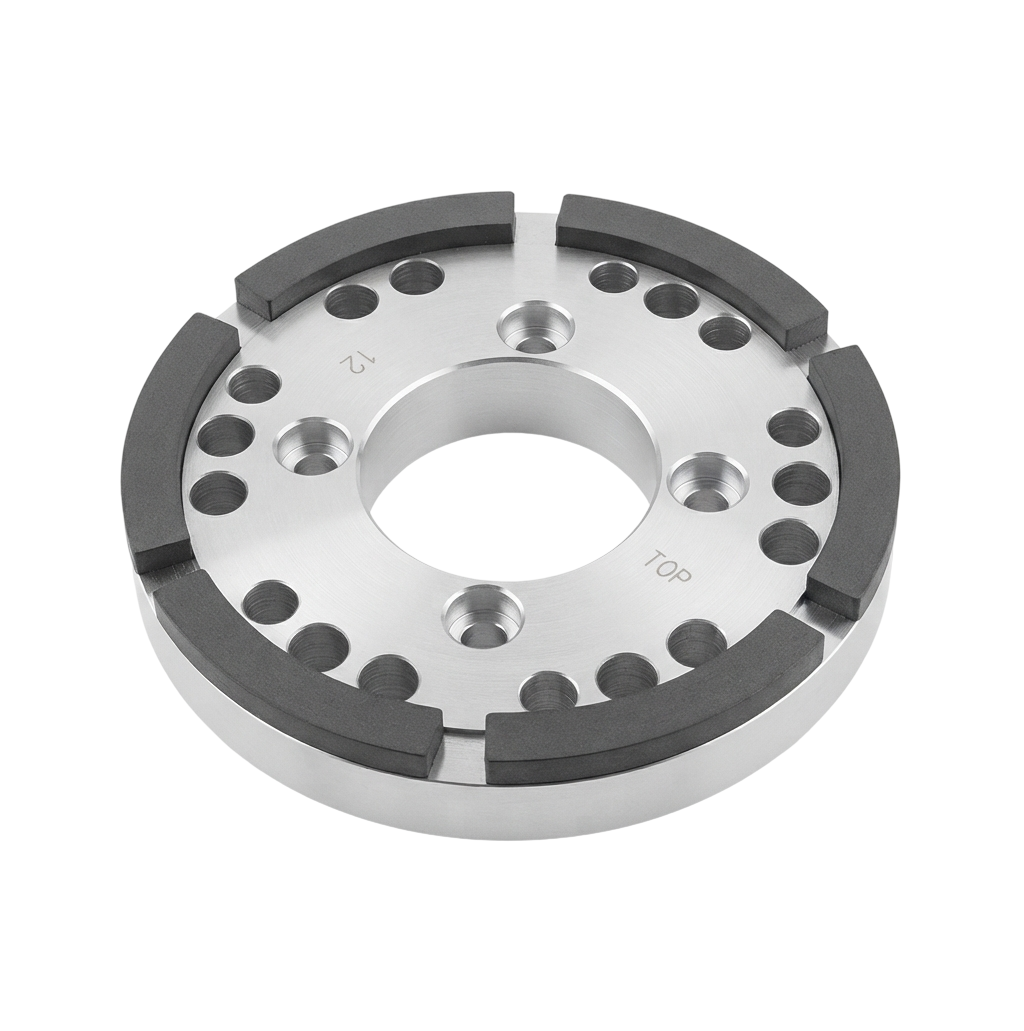

Surface Polishing Wheel (Segmented Ring)

 Silicon Wafer Surface Polishing
